Acoustic-Rib Panels

Acoustic comfort with a discreet design

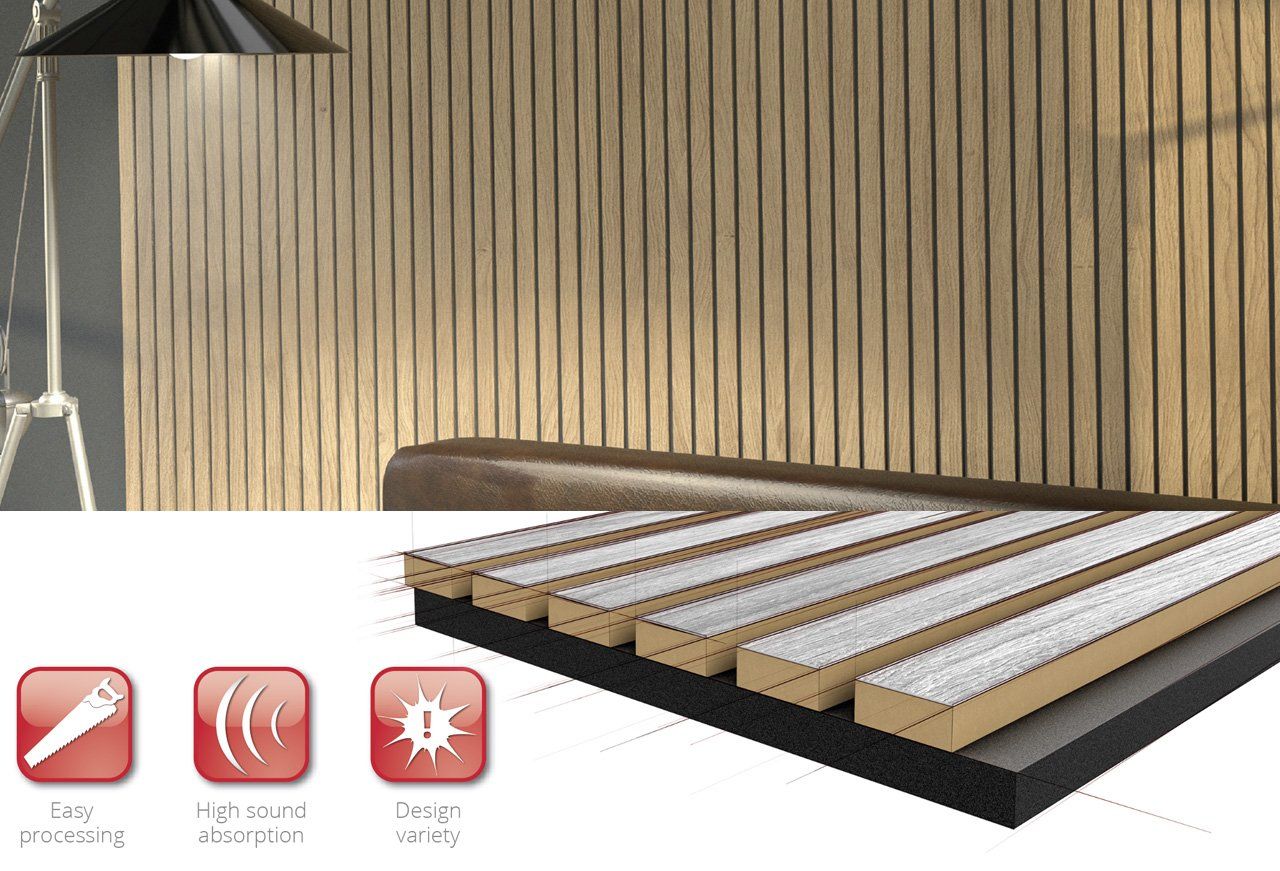

Richter Acoustic-Rib Panels are made of slats which are individually manufactured with a variety of sufaces and attached to acoustic felt boards. These ready-to-use elements can be easily assembled or simply further processed if necessary.

Acoustics

Enjoy the charm of natural material surfaces in combination with the acoustic effectiveness of felt. Hitting sound is passed through the distance between the slats and then absorbed by the felt behind them. Depending on the slat width and distance, the acoustic

effectiveness can be further adjusted.

Flexibility of design

Richter Acoustic-Rib Panels offer a great deal of design freedom with a low build-up strength. The rib panels can be continuously mounted for a clean seamless look. Due to their linear appearance and visual directions, different room emotions can be created. In addition to the lightweight wall mounting, the relatively low weight also allows the application in ceiling areas. Besides popular laminates such as Egger laminates, stained and laquered real wood veneers, Richter Stone-Veneer real slate stone surfaces and Urban Grey LightBeton surfaces are also available. A variety of different felt designs and decors will set your individually accents.

The System

With standard dimensions of 2800 x 600 mm (110.2" x 23.6") even large areas can be designed fast and easy. The overlapping construction of the Richter Acoustic-Rib Panels makes it easy to attach additional surfaces. Larger individual measurements are available.

Construction

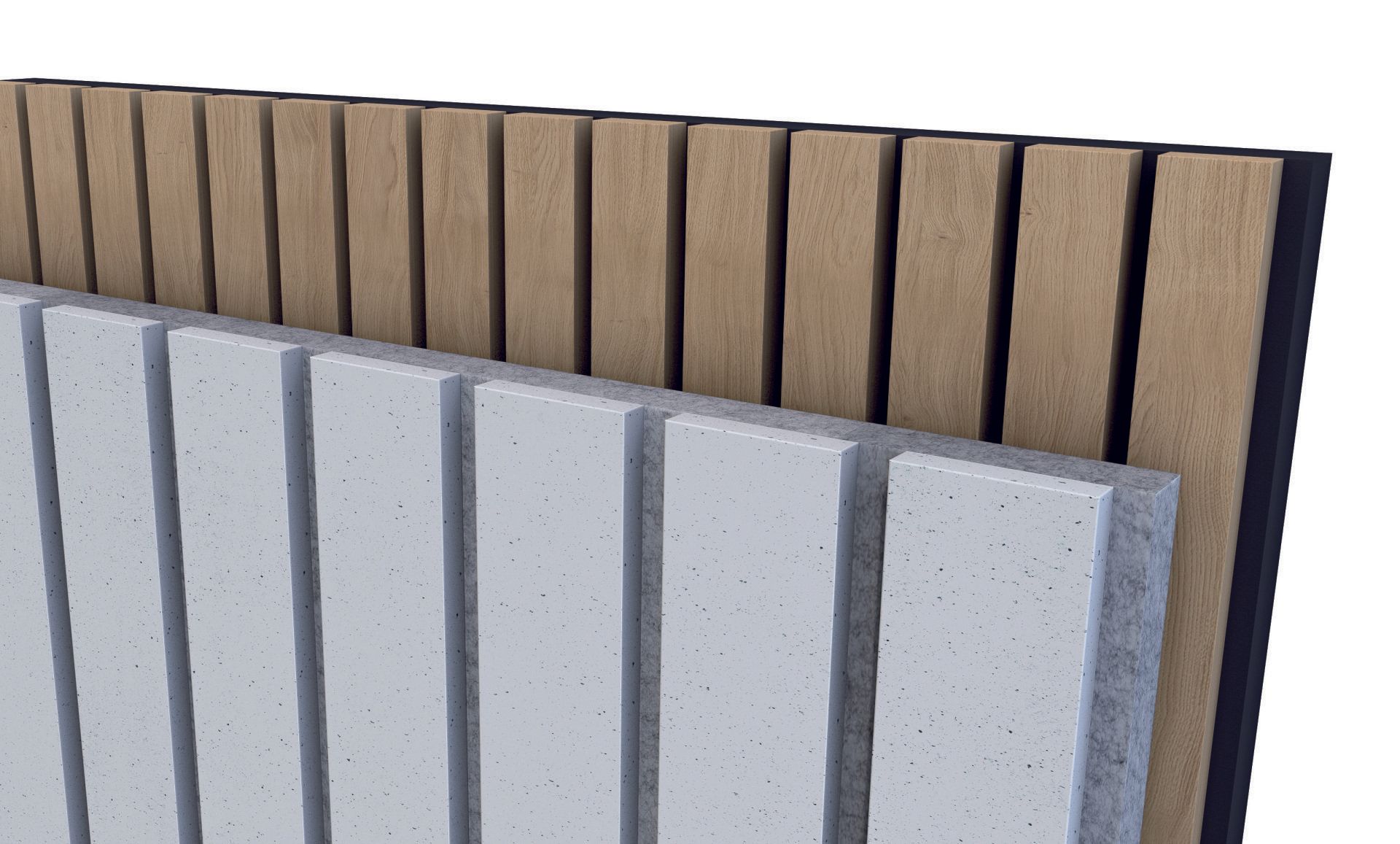

Acoustic-RibPanels are made of wood-based slats, which are laminated with the chosen surfaces. These are mounted with a corresponding distance on a 12 mm (0.5") acoustic felt.

Weight

Acoustic-RibPanels weigh between 10 and 12.5 kg/m2 (2.1 and 2.6 lbs/sqft), depending of the dimensions and number of slats.

Environmental friendliness

The acoustic felt panels are made of recycled materials and are itself also 100% recycable.

Assembly

The assembly can be performed by direct nailing, with staples, screwing or rear fixation with fasteners. Direct bonding with a strong mounting adhesive is also possible.

Dimensions

Standard dimensions

Length:        2800 mm (110.2")

Width:            600 mm (23.6") wider upon request

Thickness:   approx. 24 mm (15/16") depending on the selected surface design.

Standard grid:

Widths of ribs:  24 mm (15/16")

Distance:           7 mm (0.3") further grids available upon request
